Simulation of coil with core
3 years 2 months ago #3493
by cedric
Simulation of coil with core was created by cedric
Hello,
I'm new to use Ngsolve and I would like to simulate a coil with core to calculated force in 3D.
I began by taking the file cmagnet.py and modify it to simulate the coil and core with linear materials for the moment.

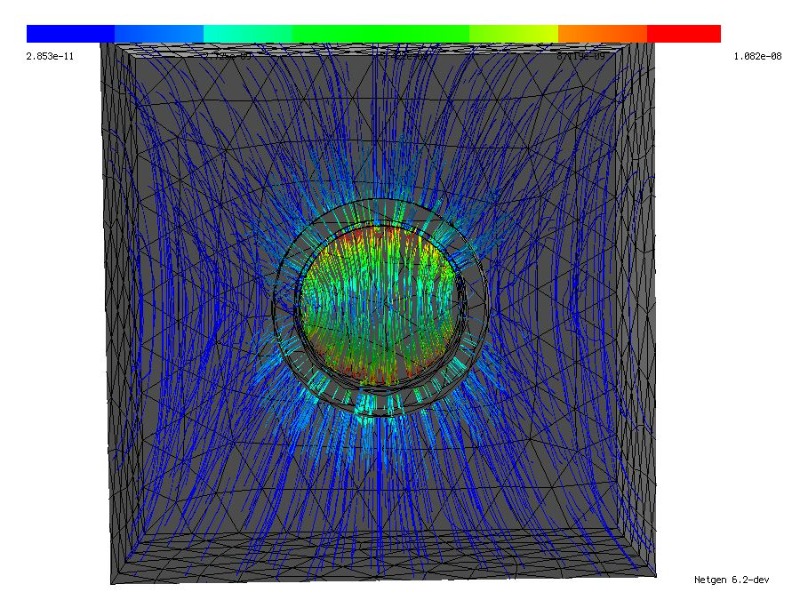

I obtain the result in copy that is fieldlines that are not concentric and I ask me why because all my problem is symetric with Z axis.
Maybe somebody could help me to understand where is my mistake?
Thanks.
I'm new to use Ngsolve and I would like to simulate a coil with core to calculated force in 3D.
I began by taking the file cmagnet.py and modify it to simulate the coil and core with linear materials for the moment.
I obtain the result in copy that is fieldlines that are not concentric and I ask me why because all my problem is symetric with Z axis.
Maybe somebody could help me to understand where is my mistake?
Thanks.
