Multiple Levelset geometries in ngsxfem
- camilo.suarezafanador
- Topic Author
- Offline
- New Member
Less
More
4 years 5 months ago #2395
by camilo.suarezafanador
Multiple Levelset geometries in ngsxfem was created by camilo.suarezafanador
Dear Colleagues
I'm trying to implement a code taking in account multiple levelset functions as circles, the questions is:
is There a way to implement a list of levelset functions for n discrete subdomains ?
Thanks by advance for your help.
Camilo
I'm trying to implement a code taking in account multiple levelset functions as circles, the questions is:
is There a way to implement a list of levelset functions for n discrete subdomains ?
Thanks by advance for your help.
Camilo
4 years 5 months ago #2397
by schruste
Replied by schruste on topic Multiple Levelset geometries in ngsxfem
Hi Camilo,
Are the circles (almost) intersecting? In that case, you really require several level set functions simultaneously and would need the subsequent intersection to compute during quadrature. This is somethings that we haven't implemented, yet. It may be added in the future, but not so much in the near future.
Otherwise you can combine several level sets with min/max operations to obtain one level set function that describes several circles at once.
Best,
Christoph
Are the circles (almost) intersecting? In that case, you really require several level set functions simultaneously and would need the subsequent intersection to compute during quadrature. This is somethings that we haven't implemented, yet. It may be added in the future, but not so much in the near future.
Otherwise you can combine several level sets with min/max operations to obtain one level set function that describes several circles at once.
Best,
Christoph
- camilo.suarezafanador
- Topic Author
- Offline
- New Member
Less
More
- Thank you received: 0
4 years 5 months ago #2399
by camilo.suarezafanador
Replied by camilo.suarezafanador on topic Multiple Levelset geometries in ngsxfem
Thank you so much Christoph !
In fact there are not intersections between the inclusions, about the use of min/max operators, should interpolate the built-in coefficient functions x,y to be able to apply the min() for example ? sorry but is not too clear for me how to implement what you suggest I was thinking in something like:
but it gives the following error: TypeError: '<' not supported between instances of 'ngsolve.fem.CoefficientFunction' and 'int'
I've tried like below too:
but the interpolation is superposed in the GridFunctionn then it gives no error but is drawing just the last levelset.
Thanks by advance for your advise !
best regards
Camilo.
In fact there are not intersections between the inclusions, about the use of min/max operators, should interpolate the built-in coefficient functions x,y to be able to apply the min() for example ? sorry but is not too clear for me how to implement what you suggest I was thinking in something like:
Code:
f = 0.2;
n = 2;
Vt = 1;
r = sqrt(f/(n*pi));
centers = np.array([[-0.25,0],[0.25,0]])
el = centers.shape
for i in range(el[0]):
levelseti = np.append(levelset, (sqrt((x-centers[i,0])**2+(y-centers[i,1])**2) - r))
levelset = min(levelseti[i] for i in range(len(levelseti)))
but it gives the following error: TypeError: '<' not supported between instances of 'ngsolve.fem.CoefficientFunction' and 'int'
I've tried like below too:
Code:
lsetp1 = GridFunction(H1(mesh,order=1))
for i in range(len(levelseti)):
InterpolateToP1(levelseti[i],lsetp1)
Draw(lsetp1,mesh,"lsetp1")
SetVisualization(min=0,max=0)
Redraw()
but the interpolation is superposed in the GridFunctionn then it gives no error but is drawing just the last levelset.
Thanks by advance for your advise !
best regards
Camilo.
4 years 5 months ago #2400
by schruste
Replied by schruste on topic Multiple Levelset geometries in ngsxfem
Hi Camilo,
The min/max-operations from python expect scalars and yield scalar. That is not what you want. NGSolve provides similar functionality (pointwise) for CoefficientFunctions through the IfPos-CoefficientFunction. To compute the min of two functions f and g you may use IfPos(f-g,g,f). So, in the context of your code you may want to use:
Best,
Christoph
The min/max-operations from python expect scalars and yield scalar. That is not what you want. NGSolve provides similar functionality (pointwise) for CoefficientFunctions through the IfPos-CoefficientFunction. To compute the min of two functions f and g you may use IfPos(f-g,g,f). So, in the context of your code you may want to use:
Code:
levelset = sqrt((x-centers[0,0])**2+(y-centers[0,1])**2) - r
for i in range(1,el[0]):
levelset_new_circle = sqrt((x-centers[i,0])**2+(y-centers[i,1])**2) - r
levelset = IfPos(levelset_new_circle-levelset, levelset, levelset_new_circle)
Best,
Christoph
The following user(s) said Thank You: camilo.suarezafanador
- camilo.suarezafanador
- Topic Author
- Offline
- New Member
Less
More
- Thank you received: 0
4 years 5 months ago #2401
by camilo.suarezafanador
Replied by camilo.suarezafanador on topic Multiple Levelset geometries in ngsxfem

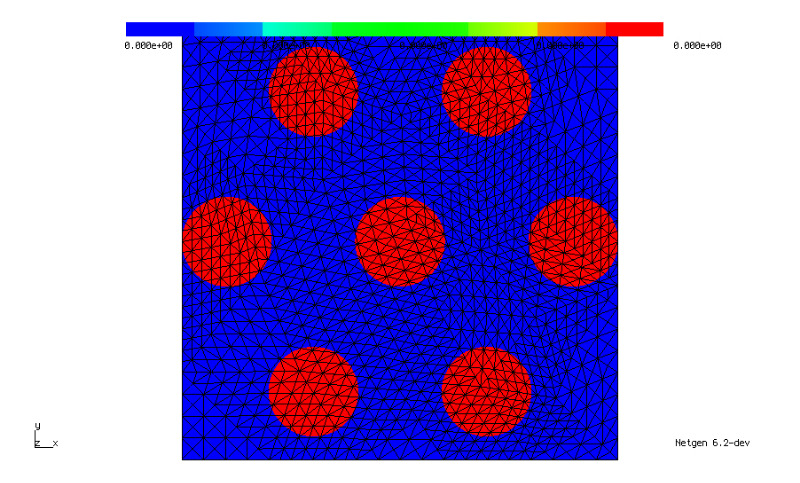

Attachments:
