Setting up a sequence for meshing a .step file
4 years 9 months ago #2386
by jleman
Setting up a sequence for meshing a .step file was created by jleman

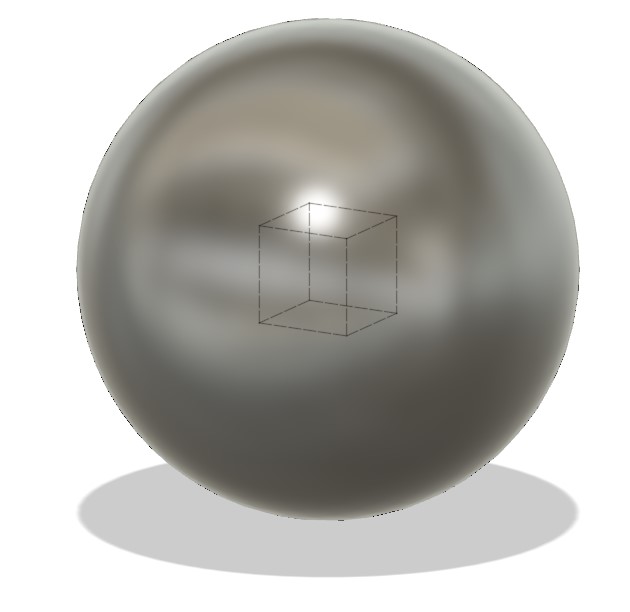

Hello, I am very new to Netgen/NGSolve and am curious if the following is possible: I have a 3D .step geometry with a void inside (a solid sphere with a small cube cut out of the middle of it - see attached). So far I can import this geometry into netgen with a python script and mesh the volume. I would like to first mesh the surface of the cube with a very refined mesh and let that surface mesh seed the volume mesh (with elements growing in size away from the cube). Is it possible to sequence a meshing process like this using a python script? If so, can you point me to where I could find the syntax? Thanks.
Attachments:
4 years 9 months ago #2387
by jleman
Replied by jleman on topic Setting up a sequence for meshing a .step file
From other threads I found some basic information in help queries within Python 3.7. I'm using Jupyter so in my case I ran:
in the output window a box comes up in which you can enter the help search term. I found some basic documenation with the following searches:
netgen.occ.OCCGeometry
netgen.libngpy._meshing
Based on these sources I came up with the following code:
Code:
help()
in the output window a box comes up in which you can enter the help search term. I found some basic documenation with the following searches:
Based on these sources I came up with the following code:
Code:
from netgen.occ import *
geo = OCCGeometry('C:/00_Temp/SphereMinusCube.step')
for x in range(1,7):
geo.SetFaceMeshsize(x,10)
geo.SetFaceMeshsize(0,50)
mesh = geo.GenerateMesh(maxh = 50,grading = 0.5)
#mesh.Save('C:/00_Temp/SphereMinusCube.vol')from netgen.occ import *
4 years 9 months ago - 4 years 9 months ago #2388
by jleman
Replied by jleman on topic Setting up a sequence for meshing a .step file
A couple of follow-up questions:
1. How do I assign faces 1 through 7 of the .step file to a boundary condition (for example, bc1) and assign face 0 of the .step file to a second boundary condition (bc2)?
2. Is there a command that will return the number of faces in a .step model?
3. Is there a command that will return the surface mesh information for a specific surface (i.e. number of triangle elements etc.)?
1. How do I assign faces 1 through 7 of the .step file to a boundary condition (for example, bc1) and assign face 0 of the .step file to a second boundary condition (bc2)?
2. Is there a command that will return the number of faces in a .step model?
3. Is there a command that will return the surface mesh information for a specific surface (i.e. number of triangle elements etc.)?
Last edit: 4 years 9 months ago by jleman.
